Pressure sensor difference type

Pressure Transmitter remote type measure the high temperature, high viscosity, crystallizing medium ,and corrosives ,by the remote device which be installed on the pipe or container, the pressure single be transferred to main body by filled fluid in capillary tube . After temperature compensation and linearity correction converted it into 4-20Madc standard current signal output. It has differential type (DP type) and gauge type (GP type), both communicate with operator by HART to set and monitor. Various remote devices are optional, main body are same as differential type pressure transmitter and gauge type pressure transmitter.

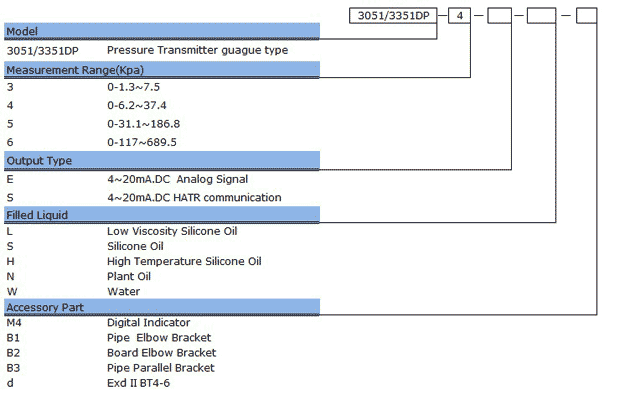

Remote device

Type		Hygienic tri-clamp Remote device (SSW)
Extended	diameter	3’’(Φ70)
Extended	Pressure class	150LB(2Mpa),300LB(Mpa)
material	Remote diaphragm	stainless steel 316L, hastelloy alloy,
	Extended	stainless steel 316L
	clamp	Chromium- carbon steel, stainless steel 316L
Extended length		20(2’’),100(4’’),150(6’’)
Accessory		Clamp or installment can

Type		Remote flange type remote device (RFW)
Remote diaphragm		stainless steel 316L ,hastelloy alloy, monel alloy, Ni200,Ti,Ta
Flange	size	1’’, 1 1/2’’,2’’(DN50),3’’(DN80),4’’(DN100)
	Standard	ANSI and HG20615, DIN and HG20592
	Pressure	150LB or PN10/16bar, 300LB or PN25/40bar , 600LB or PN64
material	spacer	stainless steel 316L, hastelloy alloy
	Loose flange	stainless steel 304L, Chromium- carbon steel
	diaphragm	stainless steel 316L

Type		Thread connect type remote device (UCW)
Connect bolt		M33×2（G1’’）	M48×3（G1/2’’）	M60×3（G2’’）
pressure		1.0~42Mpa	0.3~21Mpa	0.1~7.0Mpa
Extended size		12.5(0.5’’),25(1’’),50(2’’)
material	Remote diaphragm	stainless steel 316L, hastelloy alloy
	Probe	stainless steel 316L ,hastelloy alloy
	hexagonal head bolt	stainless steel 316L, stainless steel 304L,
	O-ring	teflon

Type		Flush flange type remote device (PFW)
Remote diaphragm		stainless steel 316L ,hastelloy alloy, monel alloy, Ni200,Ti,Ta
Flange	size	2’’(DN50),3’’(DN80),4’’(DN100)
	Standard	ANSI and HG20615, DIN and HG20592
	Pressure	150LB or PN10/16bar, 300LB or PN25/40bar , 600LB or PN64
material	spacer	stainless steel 316L, hastelloy alloy
	Flange cover	stainless steel 304L, Chromium- carbon steel
	diaphragm	stainless steel 316L

Type		Thread remote type remote device (RTW)
Remote diaphragm		stainless steel 316L ,hastelloy alloy, Ta
Connecting screw hole		NPT1/4,NPT3/8,NPT1/2,NPT3/4,NPT1,NPT1 1/2
material	Flange	stainless steel 304L, Chromium- carbon steel
	sealing gasket	teflon
	Diaphragm seat	stainless steel 316L
Fluid disposal container		stainless steel 316L, hastelloy alloy, Chromium- carbon steel

Type		Extended flange type remote device (EFW)
size	2’’(DN50),3’’(DN80),4’’(DN100)
Standard	ANSI and HG20615, DIN and HG20592
Pressure	150LB or PN10/16bar, 300LB or PN25/40bar , 600LB or PN64
Remote diaphragm	stainless steel 316L, hastelloy alloy,Ta
Extended part	stainless steel 316L
Loose flange	stainless steel 304L, Chromium- carbon steel
Extended part length		50(2’’),100(4’’),150(6’’),200(8’’)

For RFW, EFW AND PFW
