Mini Cylinder CDM2B
- CDM2B series mini-cylinder normally is with magnet. Bore size 20mm, 25mm, 32mm and 40mm is optional. The normal cushion type is rubber buffering. As to the acting type we have double acting, single extend acting, single return acting etc. This cylinder can be done a maximum speed of 1000mm / s. delicate appearance, wide range of applications.
- Specification
-
Bore(mm)
20
25
32
40
Working Medium
Filtered Air
Motion Pattern
Double Action Type
Compression Pressure
15 bar
Max. Operating Pressure
0.5~9.9 bar
Operating Temperature
5~60℃
Operating Speed Range
50~1000mm/s
Cushioning
Seal cushioning or pneumatic cushioning
Connection
G1/8

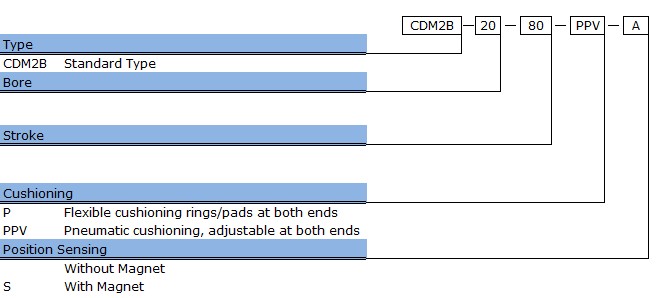

- How to order
-
