Air Source Treatment FRC

PDF Download

FRC consisted of LFR and LOE, each unit can be ordered separately. LF can filter fluid oil, condensed water and impurity from compressed air. Standard 40μm filter element can be replaced by a 5μm filter element easily for special application. The LR maintains operating pressure when pressure oscillation between imputing pressure and compressor air Lubricator adds oil to the compressed air automatically and equably.The pressure drop when compress air flows through the sight feed oiler, which will force the oil deliver to sight oil indicator from oil cup, then oil mixes with compressor air and atomized, flows into air channel.The oil drip can be controlled by the regulating screw . Normally,1 to 12 drops /1000L of the air is sufficient.

Specifications

Size

MINI

MIDI

MAXI

Medium

Compressed air

Features of structure

Sintered filter with water separator;

MINI/MIDI: Diaphragm Type regulator;

MAXI: Piston regulator;

Direct constant-density lubricator

Mounting Type

Pipe mounting or foot mounting

Assembly position

Vertical ±5°

Connection

G1/8

G1/4

G3/8

G1/2

G3/4

Standard nominal flow rate

LFR-…(-A)

700

1000

1200

200

2600

7000

8000

LFR-…-7-(A)

800

1300

1500

2500

2800

8500

8700

LFR-…-M5-(-A)

600

850

1050

1700

1800

2100

6500

7200

Primary pressure

Manual condensate drain

1~16bar

Automatic condensate drain

1.5~12 bar

Working pressure

1.5~12bar 0.5~12bar / 0.5~7bar

Min. standard nominal flow rate

3 l/min

6 l/min

10 l/min

Grade of filtration

40μm / 5μm

Capacity of condensate fluid

22ml

43ml

80ml

Temperature range

0~60°C

Materials information

Housing: Zinc die-casting;

Filter bowl and oil bowl: PC;

Metal bowl guard: aluminium alloy

Sealing: NBR

Adjusting Knob: POM

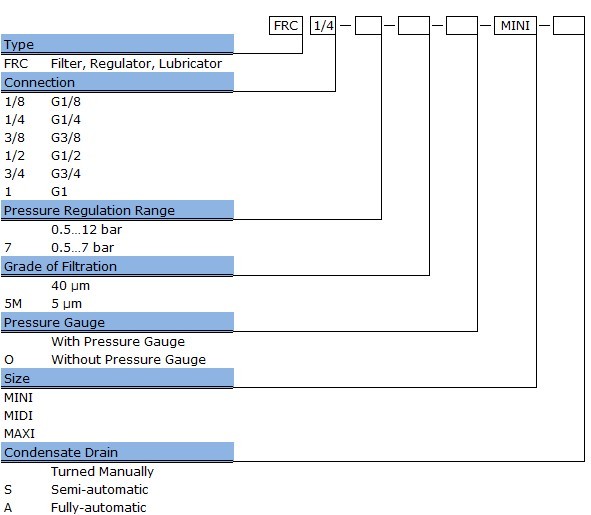

How to order
