PRODUCTSAir Preparation Unit
Filter Regulator AFR_BFR
- Air treatment units product ------ AFR、BFR filter & regulator are same style as AIRTAC. It fixs filter and regulator together as one part, make it has compact dimension. But it does not affect the excellent performance of filtration and decompression. We manufacture all important parts by ourself to insure the quality, such as filter core. Outsourcing parts were selected and tested very strictly. Auto Drain can be selected.
Specifications
|
Model |
AFR1500 |
AFR2000 |
BFR2000 |
BFR3000 |
BFR4000 |
|
|
Operating Fluid |
Air |
|||||
|
Joint Pipe Bore |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/2" |
|
|
Filtering Element Roughness |
40μ |
|||||
|
Range of Adjustable Pressure |
0.05~0.85MPa |
|||||
|
Max. Adjustable Pressure |
0.95MPa |
|||||
|
Ensured Pressure Resistance |
1.5MPa |
|||||
|
Operate temperature Range |
5~60℃ |
|||||
|
Capacity of Filter Cup |
15cc |
60cc |
||||
|
Weight |
0.26kg |
0.40kg |
||||
|
Material |
Body |
Aluminum Die-casting Forming |
||||
|
Container Cup |
PE |
|||||
|
Protective Cup Cover |
- |
Iron |
||||

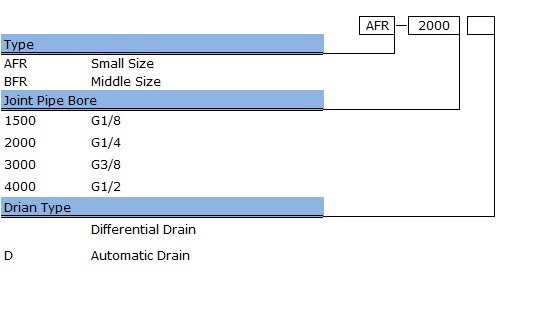

How to order
