PRODUCTSAir Preparation Unit

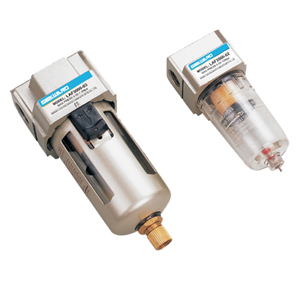

Air Filter AF1000_5000
- AF1000-5000 filter are same style as SMC.It has standard dimensions and steady performance. High quality filter elements supply clear air for valve and cylinder. We manufacture all important parts by ourself to insure the quality.Outsourcing parts were selected and tested very strictly. Auto Drain can be selected.
Specification
|
Bore(mm) |
AF1000-M5 |
AF2000-01 |
AF2000-02 |
AF3000-02 |
AF3000-03 |
|
Rated Flow |
110 |
750 |
750 |
1500 |
1500 |
|
Joint Pipe Bore |
M5 |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
|
Filter Precision |
25 μm |
||||
|
Highest Working Pressure |
1.0 MPa |
||||
|
Ensured Pressure Resistance |
1.5 MPa |
||||
|
Operating Temperature Range |
5-60 ℃ |
||||
|
Container Material |
Polycarbonate |
||||
|
Drain Function |
Differential Drain |
Differential Drain, Automatic Drain |
|||
|
Bore(mm) |
AF4000-03 |
AF4000-04 |
AF4000-06 |
AF5000-06 |
AF5000-10 |
|
Rated Flow |
4000 |
4000 |
6000 |
7000 |
7000 |
|
Joint Pipe Bore |
G3/8" |
G1/2" |
G3/4" |
G3/4" |
G1" |
|
Filter Precision |
25 μm |
||||
|
Highest Working Pressure |
1.0 MPa |
||||
|
Ensured Pressure Resistance |
1.5 MPa |
||||
|
Operating Temperature Range |
5-60 ℃ |
||||
|
Container Material |
Polycarbonate |
||||
|
Drain Function |
Differential Drain, Automatic Drain |
||||

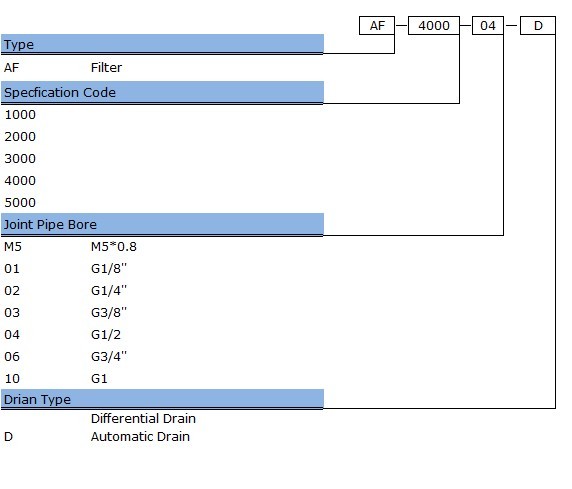

How to order
