Hydro Pneumatic Cylinder HPN

  • hydro_pneumatic_cylinder_hpn
  • HPN series of gas-liquid boosting cylinders are mainly used for stamping, rivets, bending and stamping operations, which using pure pressure air as a driven force, using front and rear pistons sectional area ratio, to make the low pressure air into the high oil pressure , the output ration will be up to 25:1
  • Specification

  • Motion pattern

    Double Action

    Pressure range

    4-7 kg/cm2 filtered compressed air

    Fuel oil

    ISO Vg68

    Temperature

    -5~80℃ (other temperature can be customized)

    operating speed

    50~700mm/s

    Oil cylinder proof pressure

    210 kg/cm2

    Air cylinder proof pressure

    15 kg/cm2

    Stroke tolerance(mm)

    +1.0mm

    0

    Working Frequency

    More than 10 s/min

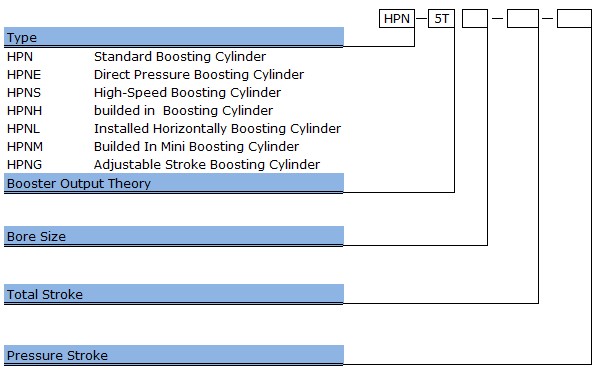

  • How to order
