You Are Here: Home » Products » Hydro-Pneumatic Cylinder » Direct Compression Booster HPA

PRODUCTSHydro-Pneumatic Cylinder

Direct Compression Booster HPA

  • direct compression booster
  • HPA type booster is a pre-compressed booster, with big oil capacity, used for long stroke hydraulic cylinder. It is also can work with two kinds of different pressures and speed controls, work Best when 6 times in one minute.
  • Specification



Item\Specification

0807

0816

1011

1025

1217

1239

1628

1664

Pressure rate

7.1/1

16/1

11.1/1

25/1

17/1

39/1

28/1

64/1

Output (cm3)

70, 120, 200 (Other Oil output are accepted)

Hydromantic(6kg air pressure)

46.3

96

66.6

150

104

234

170

384

Action

Double Action

Pressure

4-7 kg/cm2 compressed dry air after filtrate.

Cycle oil

ISO VG32

Working temperature

-5~ +80℃  (Other temperature are accepted)

Operation temperature

50-70mm/s

Hydro-cylinder Pressure resistance

300 kg/cm2

Cylinder Pressure resistance

15 kg/cm2

Stroke tolerance

+1.0mm

0

Working frequency

10 times/MIN

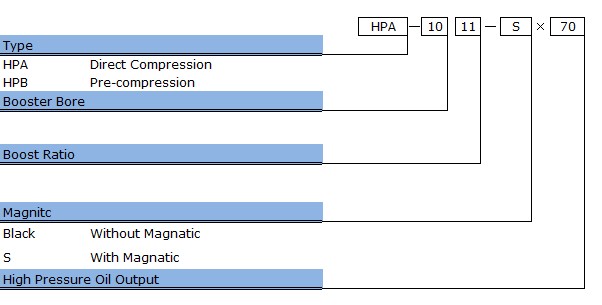

  • How to order
