Booster Pump HFBD
- FHBD series gas booster pump use single air control non-equilibrium gas distribution valve to achieve reciprocating motion for pump. Pneumatic drive can be stopped with the servo. Ideally suited for a variety of high-pressure gas tests or as a high-pressure gas source, this pump comes with air-cooling device, no other cooling pump. Double acting booster pump and double acting two stages one are twice compare with single acting one . Double acting two stages booster pump mainly used in an occasion of low initial gas pressure and high outlet gas pressure
- Specification
-
Model
FHBD1204
FHBD1206
FHBD1209
FHBD1215
FHBD1225
FHBD1239
Boost Ratio
4:1
6:1
9:1
15:1
25:1
9:1
Formula to Calculate Gas Outlet Pressure
4 Pa
6 Pa
9 Pa
15 Pa
15 Pa
39Pa
Min. Gas Inlet Pressure
0
1.7
3.4
7.5
12
20
Max. Gas Inlet Pressure
32
48
72
120
200
312
Displacement Volume Per Stroke
249
157
100
64
39
25
-
Model
FHBD1606
FHBD1610
FHBD1616
FHBD16255
FHBD1640
FHBD1660
Boost Ratio
6:1
10:1
16:1
25:1
40:1
60:1
Formula to Calculate Gas Outlet Pressure
6 Pa
10 Pa
16 Pa
25 Pa
40 Pa
60 Pa
Min. Gas Inlet Pressure
0
1.7
3.4
7.5
12
20
Max. Gas Inlet Pressure
48
80
128
200
320
480
Displacement Volume Per Stroke
249
157
100
64
39
25

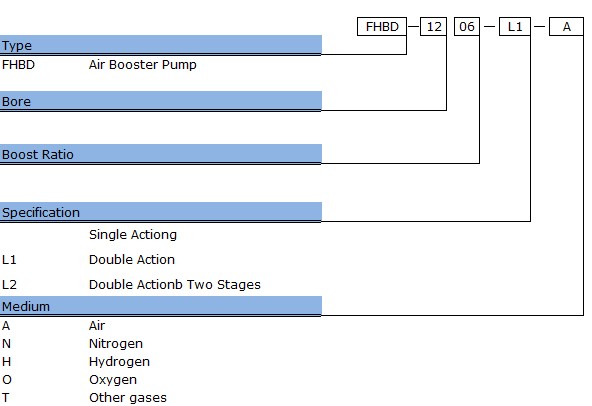

- How to order
-
