Mechanical Valve MSV
- MSV series mechanical valve are controlled by manpower or mechanical power on different conditions. It has two-position three-way and two-position five-way. Various controlling forms are optional.
- Specification
-
Model
MSV86321
MSV86522
MSV98322
Working Medium
40 Micron Filtered Air
Position and Way NO.
Two-position Three-way
Two-position Five-way
Two-position Three-way
Effective Sectional Area
12mm2(CV=0.67)
16mm2(CV=0.89)
16mm2(CV=0.89)
Joint pipe Bore
G1/8"
G1/4"
G1/4"
Working-pressure Range
0~0.8MPa
Operating Temperature
0~60℃

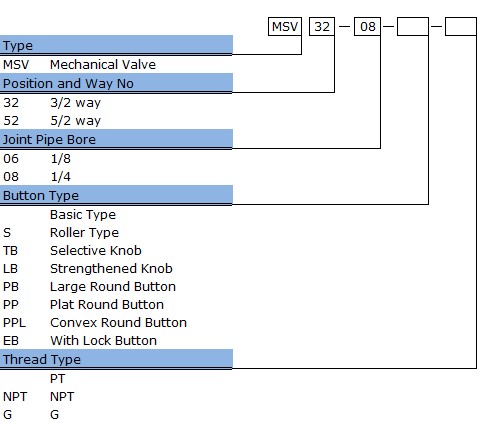

- How or order
-
