Hand Draw Valve 4R
- 3R/4R series hand draw valve has two-position three-way and two-position five-way, port size 1/8” and 1/4”.It is small, but has beautiful structure.
- Specification
-
Model
4R210-06
4R210-08
3R210-06
3R210-08
Working Medium
40 Micron Filtered Air
Position and Way NO.
Two-position Five-way
Two-position Three-way
Effective Section Area
14mm2(CV=0.78)
16mm2(CV=0.89)
14mm2(CV=0.78)
16mm2(CV=0.89)
Joint Pipe Bore
G1/8”
G1/8”
G1/8"
G1/4"
Working-pressure Range
0.08MPa
Operating temperature Range
0~60℃

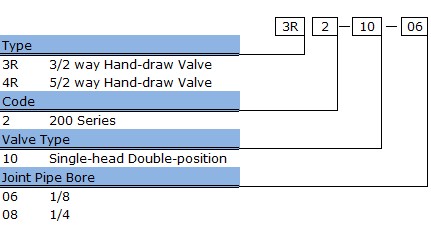

- How to order
-
