Foot Valve FV

FV series foot valve is used in all kinds of pneumatic system. It is often operated by the foot, without hands. The working pattern is two-position three-way, which R、P position can be changed from each other. Thus it makes normally closed to normally open.

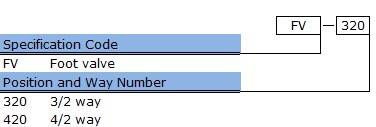

Model	FV420	FV320
Working Medium	40 Micron Filtered Air
Position and way NO.	Two-position Four-way	Two-position Four-way
Motion Patten	Direct Drive Type
Joint Pipe Bore	G1/4"	G1/8"
Working-pressure Range	0~0.8MPa
Operating Temperature Range	0~60℃
