PRODUCTSManual Valve Mechanical Valve
Hand Pull Valve 4H1
- 4H1 series hand pull valve is spacer sleeve hand-pull Valve, has two-position three-way and two-position five-way ,port size from 1/8” and 1/2”.
- Specification
-
Model
4H210-06B
4H210-06BS4H210-08B
4H210-08BS4H230-08B
4H230-08BS4H310-08B
4H310-08BSWorking Medium
40 Micron Filtered Air
Operating Method
Direct Drive Type
Port Size
G1/8''
G1/4''
G1/4''
Working-pressure Range
0~1.0Mpa
Operating Temperature Range
0~60OC
-
Model
4H310-10B
4H310-10BS4H330-10B
4H330-10BS4H410-15B
4H410-15BS4H430-15B
4H430-15BSWorking Medium
40 Micron Filtered Air
Operating Method
Direct Drive Type
Port Size
G1/4'
G1/2'
Working-pressure Range
0~1.0Mpa
Operating Temperature Range
0~60OC

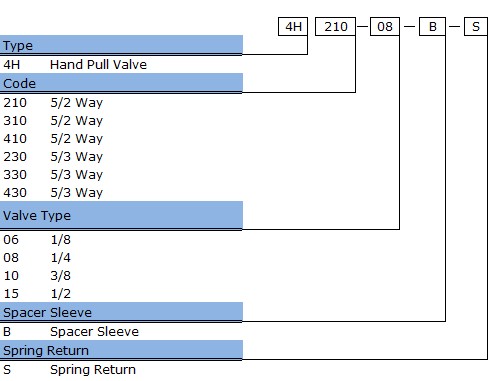

- How to order
-
