Hand Switching Valve 4HV

  • Switching Valve 4HV
  • 4HV series hand switching valve, means 4/3 and 4/2type, thread size range from 1/8’’ to 3/4’’, long stable working life. Also produce the special valve according to the customers’ requirements.
  • Specification

  • Model

    4HV-200

    4HV-300

    4HV-400

    Joint Pipe Code

    6A

    8A

    8A

    10A

    15A

    8A

    10A

    15A

    20A

    Operating Fluid

    Air

    Working-pressure Range

    0~10 kgf/cm

    Environment Temperature

    5~60℃

    Way NO.

    4

    Joint Pipe Bore

    PT1/8

    PT1/4

    PT1/4

    PT3/8

    PT1/2

    PT1/4

    PT3/8

    PT1/2

    PT3/4

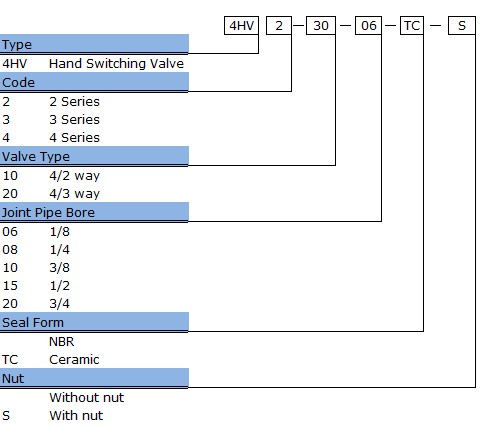

  • How or order
