Hand Pull Valve 4H

  • Hand Pull Valve 4H
  • H series hand pull valve is two-position five-way types, port size range from M5 to 1/2’’. It is normally installed in the position little far from operator.
  • Specification

  • Model

    4H210-06

    4H210-08

    4H230-08

    4H310-08

    4H310-10

    4H410-15

    Working Medium

    40 Micron Filtered Air

    Motion Patten

    Direct Drive Type

    Joint Pipe Boer

    G1/8"

    G1/4"

    G1/4"

    G1/8"

    G1/4"

    Working-pressure Range

    0~0.8MPa

    Operating Temperature Range

    0~60℃

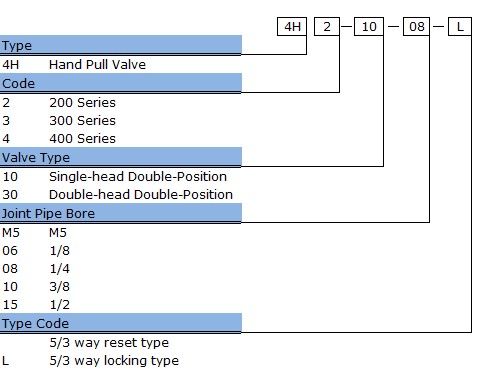

  • How to order
