PRODUCTSWater Solenoid Valve
Water Solenoid Valve 2W(small orifice)
.jpg)
- 2W series small orifice solenoid valve, also known zero-pressure solenoid valve, the initial state for normally closed, normally open only available for below 3/8’’, thread size range from 1/8’’ to 3/8’’, Din connector type and flying leads type, anti-explosion and anti-water coil are available. With the stable quality and wide application, 2W valve is popular with customers, especially in the water treatment system; the 2W valve is used widely.
- Specification
-
Model
2W025-06
2W025-08
2W040-10
2WH012-06
2WH012-08
2WH020-10
Port Size
G1/8"
G1/4"
G3/8"
G1/8"
G1/4"
G3/8"
Orifice Size
2.5
4.0
1.2
1.2
2.0
CV Value
0.23
0.60
0.05
0.05
0.15
Working Medium
Air,Water,Oil,Gas
Motion Pattern
Direct acting
Type
Normally Closed
Working-pressure
Air,Water,Oil,Gas: 0~0.7MPa
Air, Water, Oil:0~2.0MPa
Max. Pressure Resistance
1.0MPa
3.5MPa
Operating temperature
-5~80℃
Voltage Range
±10%
Material of Body
Brass
Material Oil Seal
NBR,EPDM or VITON

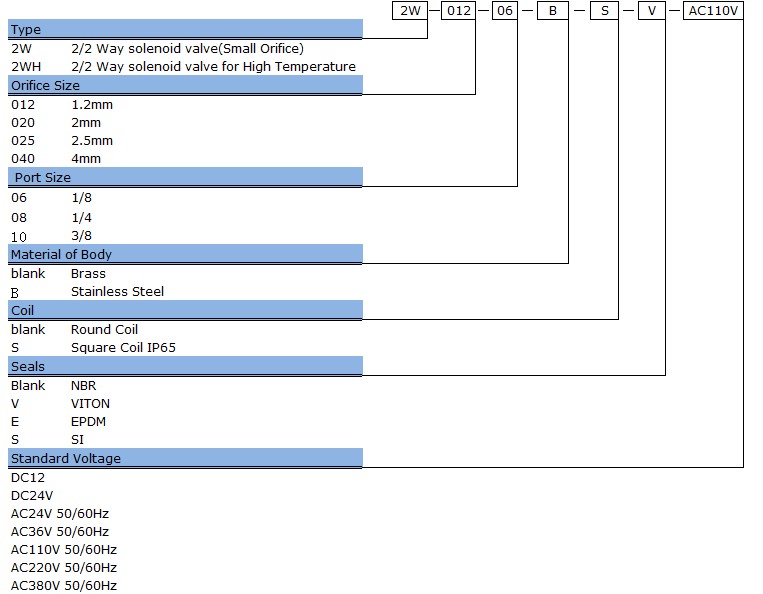

- How to order
-
