Steam Solenoid Valve US
- US series steam solenoid valve e in brass body, using high quality sealing materials and diaphragm to make sure stable quality. It is a switch element most normally used in modern industrial pipeline.
- Specification
-
Model
US-15
US-20
US-25
US-35
US-40
US-50
Working Medium
Air, Water, Oil, Gas
Motion Pattern
Pilot Type
Type
Normal Close Type
Orifice Size(mm)
17
22
30
50
Cv Valve
4.8
12
20
48
Port Size
G1/2"
G3/4"
G1"
G11/4"
G11/2"
G2"
Operation fluid viscosity
Below 20 CST
Working-pressure
0.1~1.5MPa
Max. Pressure Resistance
2.25MPa
Working temperature
-5~+80℃
Voltage Range
±10%
Material of Body
Brass
Material of Seal
PTFE

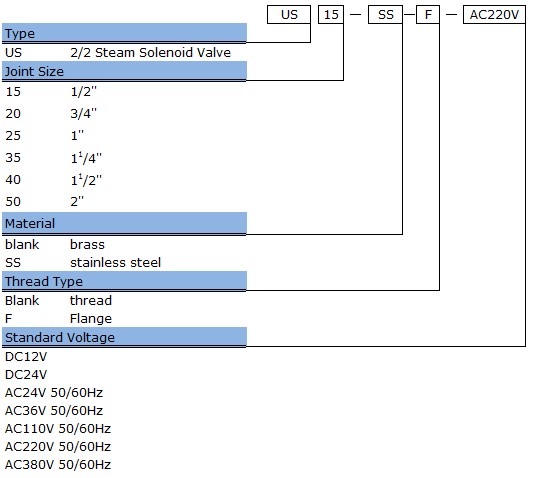

- How to order
-
