Water Solenoid Valve Q22HD

  • pneumatic piston valve
  • Q22HD series pneumatic piston valves fo neutral liquid and gaseus media, sigle and double acting optional.Widely used in food area and medicine area, industrial area, washing area and painting area and car-making area.The valves are divided as Cut-off solenoid valve, Gate-type solenoid valve and Adjustable double position solenoid valve
  • Specification

  • Model

    Q22HD-15

    Q22HD-20

    Q22HD-25

    Q22HD-35

    Q22HD-40

    Q22HD-50

    Orifice size

    15

    20

    25

    35

    40

    50

    Port size

    1/2

    3/4

    1

    11/4

    11/2

    2

    KV valve

    4

    5

    10

    25

    25

    40

    Working medium

    Air, water, oil, liquid gas, free running viscosity liquid

    Fluid pressure

    0-1.0MPa

    Medium temperature

    NBR for -5-80℃(VITON for -5-150℃)

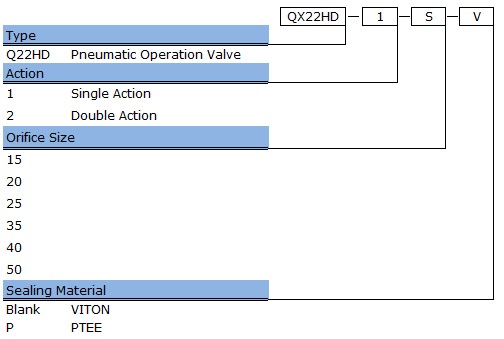

  • How to order
