Water Solenoid Valve 2V

  • 2 way water solenoid valv
  • 2V series 2/2 way solenoid valve, pilot operated and normally close , port size from 3/8'' to 1'' .
  • Specification

  • Model

    2V130-10

    2V130-15

    2V250-20

    2V250-25

    Port Size

    G3/8’’

    G1/2"

    G3/4"

    G1"

    Orifice Size(mm)

    13

    25

    Cv Valve

    6.2

    23

    Working Medium

    Air, Water, Oil

    Operation fluid viscosity

     Below 20 CST

    Working-pressure

    0.05~0.7MPa

    Max. Pressure Resistance

    1.05MPa

    Working temperature

    -10~+80℃

    Voltage Range

    ±10%

    Material of Body

    Brass

    Material of Seal

    NBR

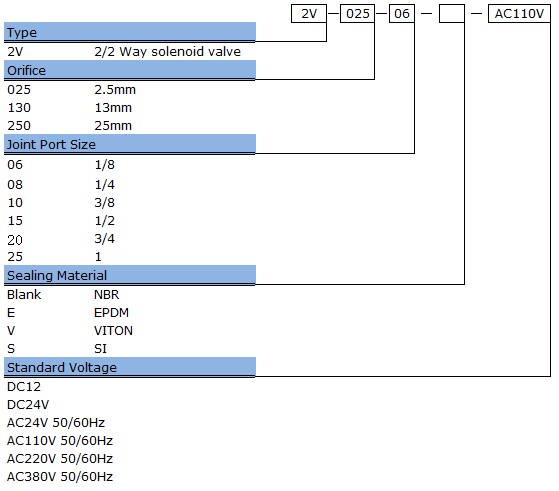

  • How to order
