Water Solenoid Valve 2WB

  • stainless steel solenoid valve
  • 2WB series solenoid valve with stainless steel body ,media can be water , weak acid & alkali. Port size from 1/8'' to 3/8'', direct acting and normally closed.
  • Specification

  • Model

    2WB-15

    2WB -20

    2WB -25

    2WB -35

    2WB -40

    2WB 50

    Orifice size

    16

    20

    25

    35

    40

    50

    Port size

    1/2

    3/4

    1

    11/4

    11/2

    2

    KV valve

    4.8

    7.8

    12

    24

    28

    48

    Working medium

    Air, water, oil, liquid gas, free running viscosity liquid

    Operation

    Direct Acting

    Acting type

    Diaphragm type

    Working pressure

    0-1.0MPa

    Working temperature

    -5-60℃

    Medium temperature

    NBR for -5-80℃(VITON for -5-150℃)

    Working voltage

    AC380V,220V,110V,36V,24V

    DC220V,110V,36V,24V,12V

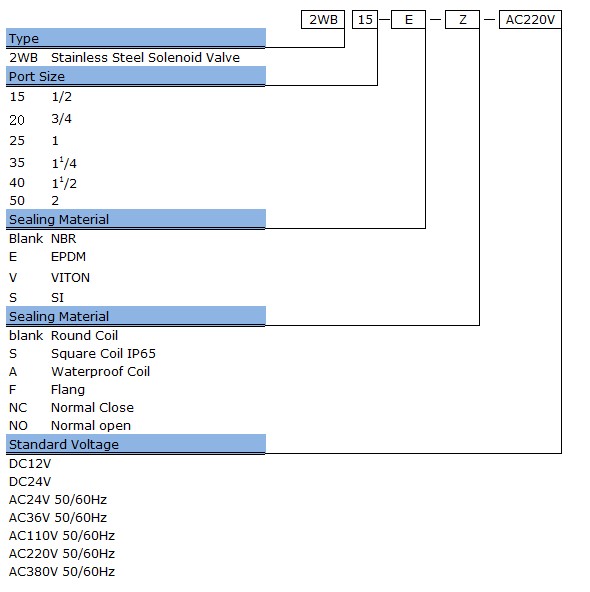

  • How to order
