Water Solenoid Valve AB41

  • water_solenoid_valve_ab41
  • AB series have AB31 , AB41 and AB42 , normally closed and normally open optional. Connection can b wire , DIM and round coi

Specification



Model

AB31-01-1

AB31-01-2

AB31-01-3

AB31-01-4

AB31-01-5

AB31-01-6

Port size

1/8"

Orifice Size

1.5

2.0

3.0

3.5

4.0

5.0

CV valve

0.1

0.15

0.31

0.42

0.54

0.8

Max working Pressure

2.5 MPa

1.5 MPa

0.7 MPa

0.6 MPa

0.25 MPa

0.15 MPa

Working Medium

Air, Water ,Oil , Steam

Type

Normally close

Operating temperature

-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V







Model

AB41-02-1

AB41-02-2

AB41-02-3

AB41-02-4

AB41-02-5

AB41-02-6

Port size

1/4"

Orifice Size

1.5

2.0

3.0

3.5

4.0

5.0

CV valve

0.1

0.15

0.31

0.42

0.54

0.8

Max working Pressure

4.0 MPa

2.5 MPa

0.9 MPa

0.6 MPa

0.25 MPa

0.15 MPa

Working Medium

Air, Water ,Oil , Steam

Type

Normally close

Operating temperature

-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V



Model

AB42-02-1

AB42-02-2

AB42-02-3

AB42-02-4

AB42-02-5

AB42-02-6

Port size

1/4"

Orifice Size

1.5

2.0

3.0

3.5

4.0

5.0

CV valve

0.1

0.15

0.31

0.42

0.54

0.8

Max working Pressure

2.0 MPa

1.0 MPa

0.7 MPa

0.5 MPa

0.4 MPa

0.15 MPa

Working Medium

Air, Water ,Oil , Steam

Type

Normally open

Operating temperature

-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V

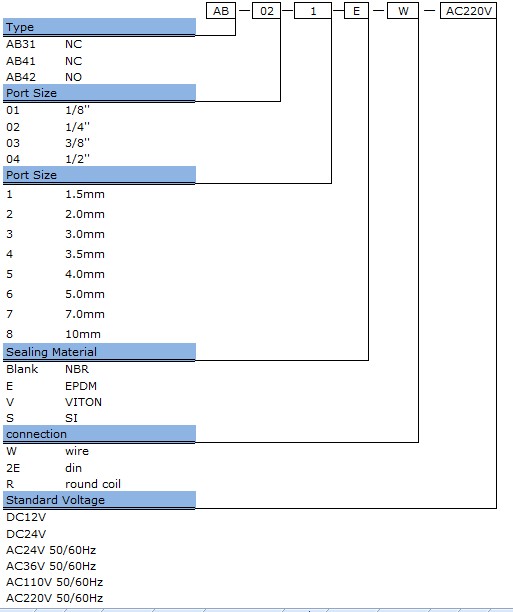

 How to order
