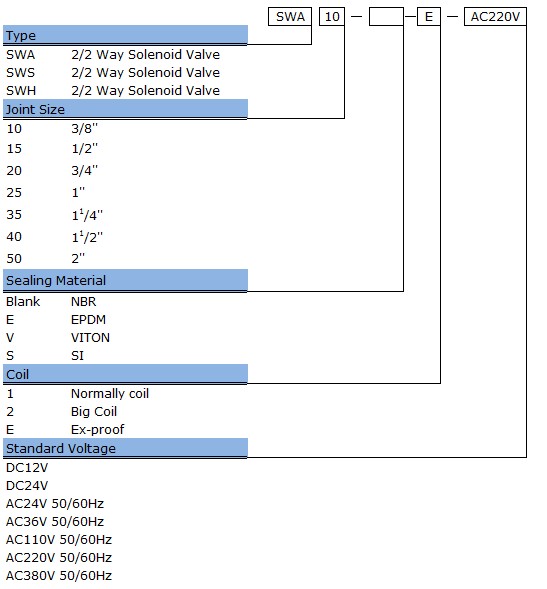

Water Solenoid Valve SWA

Model

SWA-10

SWA-15

SWA-20

SWA-25

SWA-35

SWA-40

SWA-45

SWA-50

Port Size

G3/8"

G1/2"

G3/4"

G1"

G1¹/4"

G1¹/2"

G1¹/2

G2’’

Orifice Size(mm)

15

15

20

25

31

31

41

41

CV Value

3.0

4.0

6.8

11

16

21

26

31

Working Medium

Air, Water, Light Oil, Gas

Motion Pattern

Direct Drive Type

Acting Type

Normal Closed

Working-pressure

0~1.0Mpa

Operating temperature

-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

Material of Body

Brass

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V

Model

SWS-10

SWS-15

SWS-20

SWS-25

SWS-35

SWS-40

SWS-45

SWS-50

Port Size

G3/8"

G1/2"

G3/4"

G1"

G1¹/4"

G1¹/2"

G1¹/2

G2’’

Orifice Size(mm)

15

15

20

25

31

31

41

41

CV Value

3.0

4.0

6.8

11

16

21

26

31

Working Medium

Water, high temperature fluid

Motion Pattern

Direct Drive Type

Acting Type

Normal Closed

Working-pressure

0~1.0Mpa

Operating temperature

-15~150℃ FOR VITON, EPDM, -15~185℃ for TEFLON

Material of Body

Brass

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V

Model

SWH-10

SWH-15

SWH-20

SWH-25

SWH-35

SWH-40

SWH-45

SWH-50

Port Size

G3/8"

G1/2"

G3/4"

G1"

G1¹/4"

G1¹/2"

G1¹/2

G2’’

Orifice Size(mm)

15

15

20

25

31

31

41

41

CV Value

3.0

4.0

6.8

11

16

21

26

31

Working Medium

Heavy Oil, High viscosity Fluid

Motion Pattern

Direct Drive Type

Acting Type

Normal Closed

Working-pressure

0~1.0Mpa

Operating temperature

-10~120℃ for TEFLON

Material of Body

Brass

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V
