Water Solenoid Valve 223

  • diaphragm solenoid valve
  • 223 series solenoid valve suitable for gas, wter, oil , weak acid & alkali. wterhammer-free design, low noise. smooth running, high flow, high riliabllity, long sevice.

Specification



Model

2231008

2231010

2231015

2231020

2231025

2231032

2231040

2231050

Port Size

G1/4"

G3/8"

G1/2"

G3/4"

G1"

G11/4"

G11/2

G2’’

Orifice Size(mm)

10

10

13

20

25

40

40

50

CV Value

2

2

3.6

8.3

11

25

30

45

Working-pressure

0.03~1.0Mpa

0.07~1.6Mpa

Operating temperature

NBR for -5-80℃

Material of Body

Brass

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V

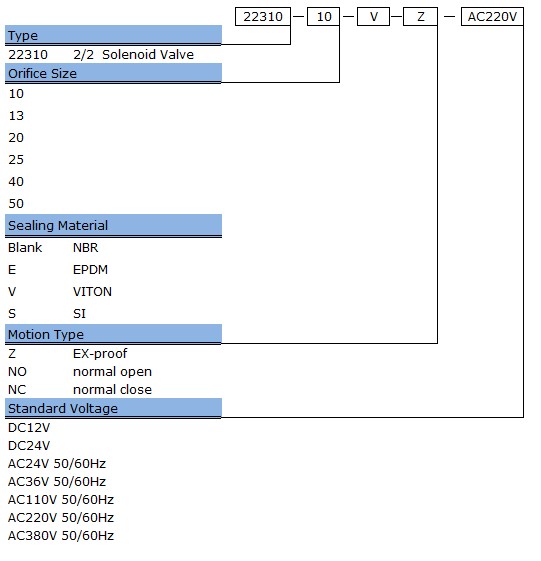

How to roder
