Angle Seat Valve JZF

  • Angle Seat  Valve JZF
  • JZF series angle valve, stainless steel body materials, equipped with plastic actuator, SS316 and SS304 are available, single acting normally closed and double acting normally open, actuator size range from 40mm to 100mm, port size range from 3/8’’ to 2’’. Max temperature of the medium is up to 180 cent degree, JEF series angle valve is very popular with the competitive price.
  • Specification
  • Model

    JZF-15

    JZF-20

    JZF-25

    JZF-32

    JZF-40

    JZF-50

    Joint Pipe Bore

    G1/2

    G3/4

    G1

    G1-1/4

    G11/2

    G2

    Cv Value

    4.2

    8

    19

    27.5

    42

    55

    Max. Pressure(Mpa)

    0~1.6

    0~1.1

    0~1.1

    0~1.5

    0~1.25

    0~1.0

    Controlling Pressure

    0.39

    0.39

    0.42

    0.5

    0.44

    0.4

    temperature Range

    -10~180℃

    Installation

    Any Position

    Flow direction

    A(flow direction below the seat) or B( flow direction above the seat)

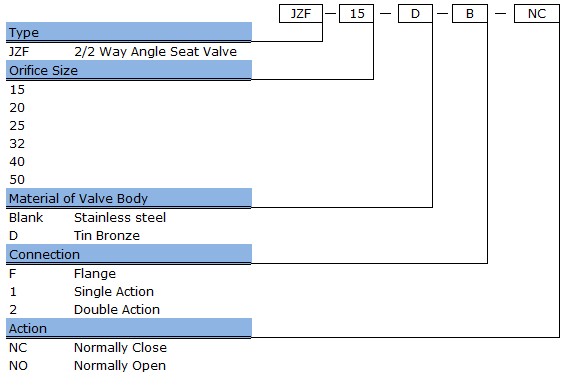

  • How to order
