Water Solenoid Valve 2P

  • plastic solenoid valve
  • 2P series solenoid valve is the direct acting type with normally closed,oriffice is 2.5mm,body materials is engineering plastic,small dimension,wide application.With many year experience of the technology,2P series valve have many advantages,such as competitive price,stable quality and long life.
  • Specification

  • Model

    2P025-06

    2P025-08

    Port Size

    G1/8"

    G1/4"

    Working Medium

    Air, Water, Oil, Gas

    Motion Pattern

    Direct Type

    Type

    Normal Close Type

    Orifice Size(mm)

    2.5

    Cv Valve

    0.23

    Operation fluid viscosity

     Below 20 CST

    Working-pressure

    0~0.7MPa

    Max. working pressure

    1.0 Mpa

    Working temperature

    -5~+80℃

    Voltage Range

    ±10%

    Material of Body

    Engineering plastic

    Material of Seal

    NBR, VITON

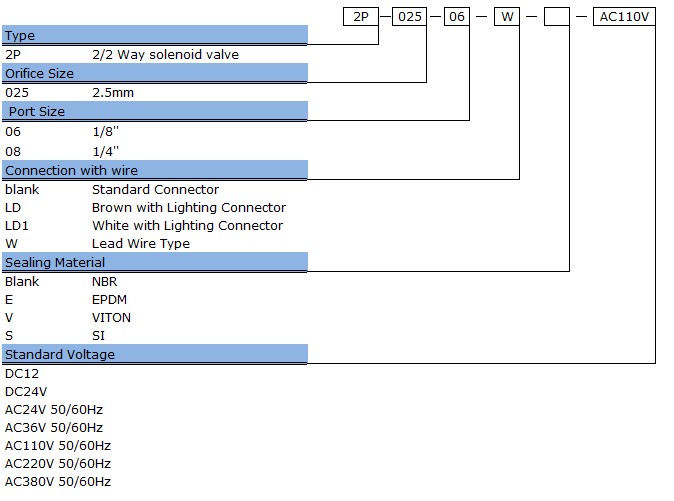

  • How to order
