PRODUCTSWater Solenoid Valve
Water Solenoid Valve PU220
- PU series solenoid valves have two types, PU220 direct acting type and PU225 pilot type. Direct acting type range from 1/8’’ to 1’’, the timer is available for 3/8’’ to 1’’, auto drain control, control frequency from 1 to 45 min, drain the water within 1 to 10 seconds. Pilot type range from 3/8’’ to 2’’, PU series valves are widely used in the air control system and water control system.
- Specification
|
Model |
PU220-01 |
PU220-02 |
PU220-03 |
PU220-03 |
PU220-04 |
PU220-06 |
PU220-08 |
|
Port size |
1/8" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
1" |
|
Orifice Size |
1.5 |
2.3 |
8 |
13 |
13 |
20 |
25 |
|
CV valve |
0.1 |
0.18 |
1 |
4 |
4 |
8.6 |
11 |
|
Working Pressure |
0~0.7MPa |
0~0.6MPa |
|||||
|
Working Medium |
Compressed air, Water , Light Oil (Below 50CST) |
||||||
|
Motion Type |
Direct Acting |
||||||
|
Working temperature |
-20~60℃ |
||||||
|
Operating temperature |
-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM |
||||||
|
Power Consumption |
22VA |
||||||
|
Working voltage |
AC380V,220V,110V,36V,24V DC220V,110V,36V,24V,12V |
||||||

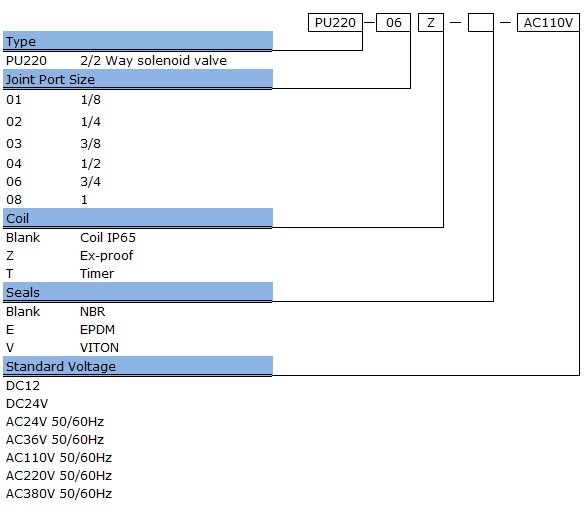

- How to order
-
