Steam Solenoid Valve 2L

2L series 2/2 pilot steam solenoid valve, thread size range from 3/8’’ to 2’’, withstand the high temperature of 180 cent degree, because of the control of steam, so called steam valve. Accordingly, the working pressure is enhanced up to 15 bar, the orifice is also make bigger to increase the velocity. With the stable performance, 2L valve is widely used in the field of steam control all over the world.

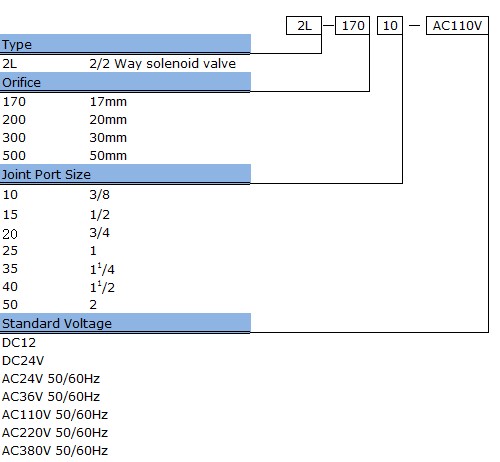

Model	2L170-10	2L170-15	2L170-20	2L200-25			2L300-35	2L300-40		2L500-50
Working Medium	Air,Water,Oil,Gas
Motion Pattern	Pilot Type
Type	Normal Close Type
Aperture of Flow Rate(mm)	17				22	30					50
CV Value	4.8				12	20					48
Joint Pipe Bore	G3/8"	G1/2"	G3/4"		G1"	G1¹/4"			G1¹/2"		G2"
Working-pressure	0.1~1.5MPa
Max. Pressure Resistance	2.25MPa
Operating temperature Range	-5~+80℃
Voltage Range	±10%
Material of Body	Brass
Material Oil Seal	PTFE
