Water Solenoid Valve 6014

  • three way solenoid valve for liquid
  • 6014 series is 3/2 way direct acting solenoid valve, have two kinds of connect, sub-base connection and port (1/8''adn 1/4'') connection.

Specification



Model

6014-01-B

6014-015-B

6014-02-B

6014-025-B

6014-01-06

6014-015-06

Orifice Size(mm)

1

1.5

2

2.5

1

1.5

Port Size

Sub-base connection

1/8’’

Working Medium

Air, Water, Oil, Gas

Working-pressure

0~1.6Mpa

0~1Mpa

0~0.8Mpa

0~0.6Mpa

0~1.6Mpa

0~1Mpa

Working temperature

-20~55℃

Operating temperature

-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

Material of Body

Brass





Model

6014-02-06

6014-025-06

6014-01-08

6014-015-08

6014-02-08

6014-025-08

Orifice Size(mm)

2

2.5

1

1.5

2

2.5

Port Size

1/8’’

1/4’’

Working Medium

Air, Water, Oil, Gas

Working-pressure

0~10.8Mpa

0~0.6Mpa

0~1.6Mpa

0~1Mpa

0~0.8Mpa

0~0.6Mpa

Working temperature

-20~55℃

Operating temperature

-5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

Material of Body

Brass

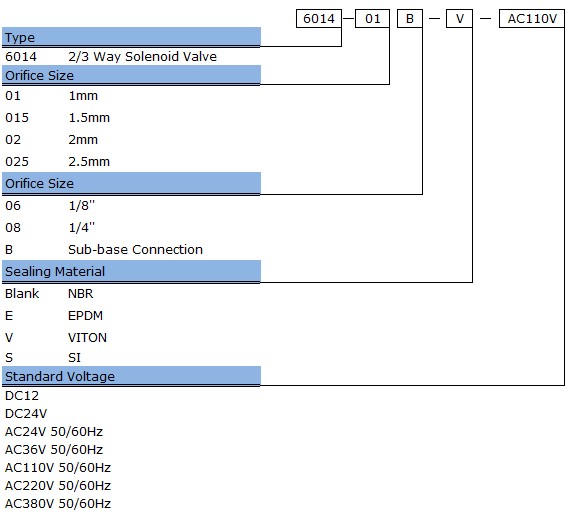

How to order
