Water Solenoid Valve VX31

  • solenoid valve 3/2 way
  • VX31/32/33 series 3/2 way direct acting solenoid valve are mainly suitable in the neutral gaseous and liquid fluid pipeline automatically control. Can be operated with zero rated pressure & circulation direction is random

Specification



Model

VX3115

VX3120

VX3125

VX3130

VX3140

Port size

1/4’’ or 3/8’’

Orifice Size

1.5

2.0

2.5

3.0

4.0

CV valve

0.07

0.14

0.21

0.25

0.35

Working Pressure

0~1.1

0~0.9

0~0.7

0~0.4

0~0.2

Working Medium

air, water, oil，

Material of seal

-5~80℃ for NBR, -15~150℃ FOR VITON

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V



Model

VX3215

VX3220

VX3225

VX3230

VX3240

Port size

1/4’’ or 3/8’’

Orifice Size

1.5

2.0

2.5

3.0

4.0

CV valve

0.07

0.14

0.21

0.25

0.35

Working Pressure

0~1.1

0~0.9

0~0.7

0~0.4

0~0.2

Working Medium

air, water, oil，

Material of seal

-5~80℃ for NBR, -15~150℃ FOR VITON

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V





Model

VX3315

VX3320

VX3325

VX3330

VX3340

Port size

1/4’’ or 3/8’’

Orifice Size

1.5

2.0

2.5

3.0

4.0

CV valve

0.07

0.14

0.21

0.25

0.35

Working Pressure

0~0.5

0~0.4

0~0.3

0~0.2

0~0.08

Working Medium

air, water, oil，

Material of seal

-5~80℃ for NBR, -15~150℃ FOR VITON

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V

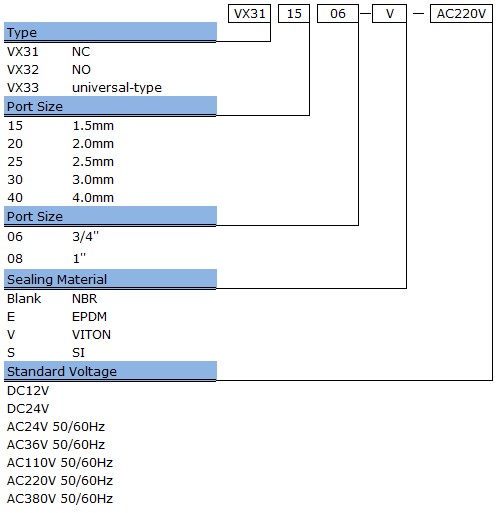

How to order
