PRODUCTSPneumatic Cylinder
Standard Cylinder DNC
- DNC standard cylinder attached with adjustable buffer at both ends, and mounted stroke switch for detecting the conversion position. Position rod with/without magnetic ring, sensor-position is optional if necessary or unnecessary. Stroke switch could mount on the cylinder, parrel directly no need mounting bracket.
- Specification
-
Bore(mm)
32
40
50
63
80
100
Motion Pattern
Double Action
Working Medium
Filtered Air
Compression Pressure
15 bar
Max. Working Pressure
10 bar
Min. Working Pressure
1 bar
Operating Temperature
5~60℃
Operating Speed Range
50~500mm/s
Lubricate
Not Necessary +1.0
Buffer Type
Air Buffer (Standard)
Buffer Stroke
20
26
45
Joint Pipe Bore
G1/8"
G1/4"
G3/8"
G1/2"

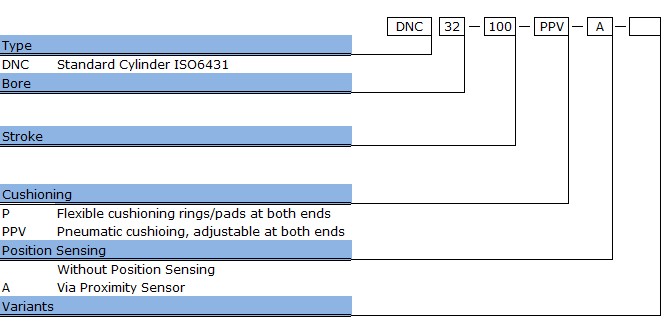

- How to order
-
