PRODUCTSPneumatic Cylinder
Mini Cylinder MI
- MI series min cylinder is accordance to ISO6432 standard, aluminum cylinder barrel and stainless steel cylinder is optional. As to the acting type we have double acting, double adjustable acting, single extend acting, single return acting etc.
Specification
|
Bore(mm) |
8 |
10 |
12 |
16 |
20 |
25 |
32 |
40 |
|
|
Working Medium |
Filtered Air |
||||||||
|
Motion Pattern |
Double Action Type, Single Acting-push Type, Single Acting-pull Type |
||||||||
|
Compression Pressure |
15 bar |
||||||||
|
Max. Operating Pressure |
Double-acting Type |
0.5~7 bar |
|||||||
|
Single-acting Type |
2-7~ bar |
||||||||
|
Operating Temperature |
5~60℃ |
||||||||
|
Operating Speed Range |
50~750mm/s |
||||||||
|
Joint Pipe Bore |
M5*0.8 |
1/8’’ |
1/4’’ |
||||||

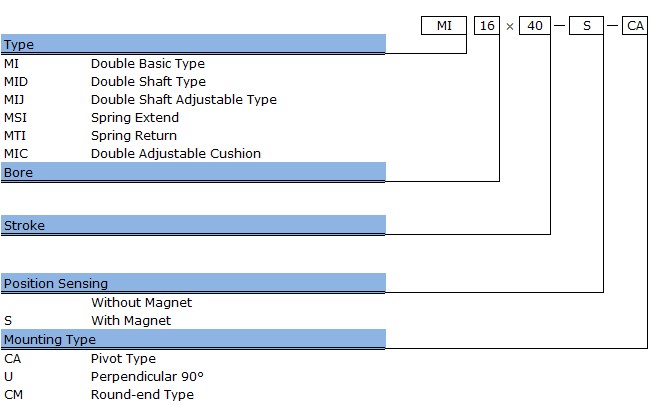

How to order
