PRODUCTSPneumatic Cylinder
Twin Rod Cylinder CXSW
- CXSW series twin rod pneumatic cylinder with built-in magnet for auto switch (magnet sensor) and self-lub bearing, the piston rod is lubrication free. Use rubber cushion for standard type to keep the cylinder operating smoothly, safely and quietly. Various mounting, delicate appearance, wide range of applications. There is no cushion if the bore size is 10mm.
- Specification
-
Bore (mm)
12
16
20
25
32
40
50
63
80
100
Fluid
air
Action Mode
Double action
Highest working pressure
1.0mpa
Lowest working pressure
0.12mpa
0.1mpa
Environment and fluld of temperature
-10~+60
Piton speed
50-500mm/s
50-400mm/s
Cushion
Rubber butter
Stroke length tolerance
+1.5~0mm
Lubrication
No need
Bearing
Sliding bearing/ball bearing
Rotational accuracy piston rod
Sliding bearing
±0.08°
±0.07°
±0.06°
±0.05°
±0.04°
Ball bearing
±0.10°
±0.09°
±0.08°
±0.06°
±0.05°
Takes over control caliber
M5*0.8
1/8
1/4
3/8

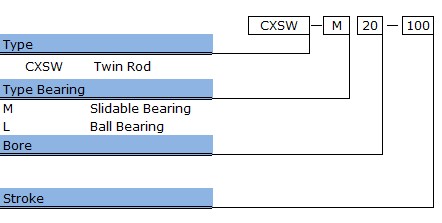

- How to order
-
