PRODUCTSPneumatic Cylinder
Standard Cylinder SU
- SU cylinder is X-Type Mickey Mouse Cylinder .The conventional bore from 32mm to 250mm, special bore from 320mm to 600mm. From the CNC Machining end covers and piston rod to the comprehensive approach by ultrasonic cleaning machine, from complete the final assembly to strictly testing. We can ensure the excellent quality and stability of the cylinder performance.
- Specification
-
Bore(mm)
32
40
50
63
80
100
Motion Pattern
Double Action
Working Medium
Filtered Air
Pressure Range
1.0~9.0 bar
Proof Pressure
15 bar
Operating Temperature
-5~70℃
Operating Speed
50~800mm/s
Cushion Type
Variable Cushion
Buffer Stroke
20
26
45
Joint Pipe Bore
G1/8"
G1/4"
G3/8"
G1/2"

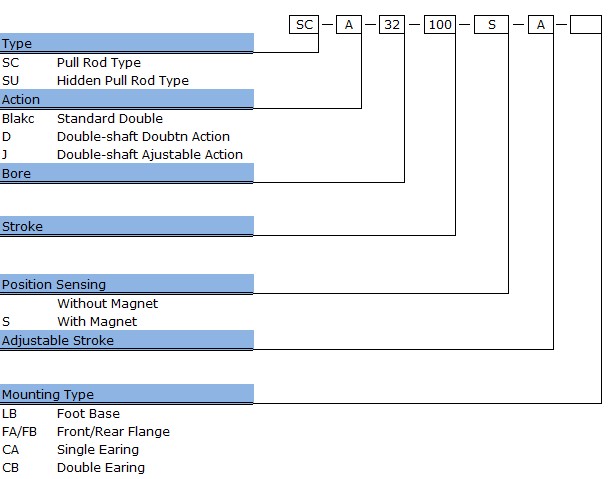

- How to order
-
