PRODUCTSPneumatic Cylinder
Mini Cylinder MA
- MA/MAL series stainless steel cylinder has aluminum cylinder barrel and stainless steel barrel .Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder. There are several mode of back cover, which makes the installation of cylinder more convenient
Specification
|
Bore(mm) |
20 |
25 |
32 |
40 |
|
Working Medium |
Filtered Air |
|||
|
Motion Pattern |
Double Action Type, single acting |
|||
|
Mounting Type |
LA, FA, SDB |
|||
|
Compression Pressure |
15 bar |
|||
|
Max. Operating Pressure |
1~9 bar |
|||
|
Operating Temperature |
-5~70℃ |
|||
|
Operating Speed Range |
30~800mm/s |
|||
|
Connection |
G1/8 |
1/4 |
||

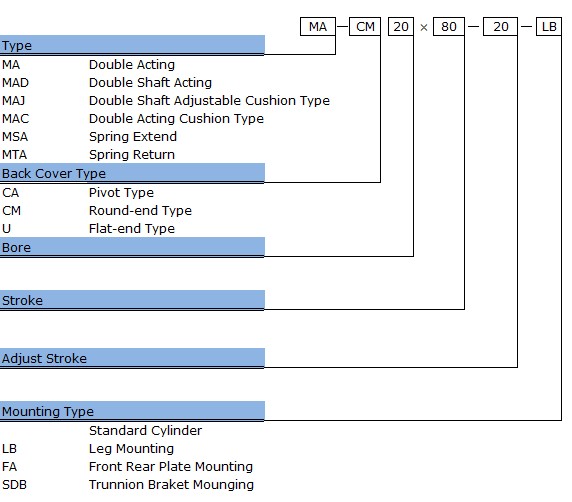

How to order
