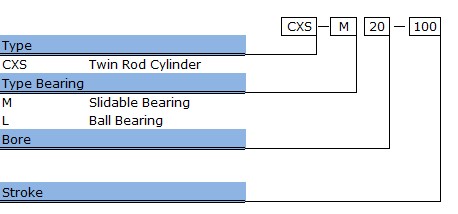

Twin Rod Cylinder CXS

Bore(mm)

6

10

15

20

25

32

Motion Pattern

Double Action

Working Medium

 Filtered Air

Compression Pressure

15 bar

Max. Working Pressure

7 bar

Min. Working Pressure

1.5 bar

1 bar

0.5 bar

Operating Temperature

-10~60℃ (not freezing)

Operating Speed Range

30~300mm/s

30~800mm/s

30~700mm/s

30~600mm/s

Cushion

Rubber cushion on both ends

Structure

 Not Necessary +1.0

Lubrication

Not required

Non-rotating accuracy

±0.01°

Buffer Type

Air Buffer (Standard)

Buffer Stroke

20

26

45

Joint Pipe Bore

M5×0.8

1/8"

Body Material

Aluminum Alloy
