PRODUCTSPneumatic Cylinder
Standard Cylinder SI
- SI standard cylinder is according to ISO6431, VDMA24562 standard. Adjustable cushion on both cylinder end to make sure the cylinder works smoothly, safe and with low noise. Self-lubricating bearing, the piston rod is lubrication free. Magnet and sufficient Fixing styles are available
Specifiaction
|
Bore(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
|
Motion Pattern |
Double Action |
|||||||||
|
Working Medium |
Filtered Air |
|||||||||
|
Compression Pressure |
13.5 bar |
|||||||||
|
Max. Working Pressure |
9 bar |
|||||||||
|
Min. Working Pressure |
1 bar |
|||||||||
|
Operating Temperature |
0~70℃ |
|||||||||
|
Operating Speed Range |
50~800mm/s |
|||||||||
|
Buffer Type |
Adjustable Buffer |
|||||||||
|
Buffer Stroke |
24 |
32 |
||||||||
|
Joint Pipe Bore |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G1/4’’ |
|||||

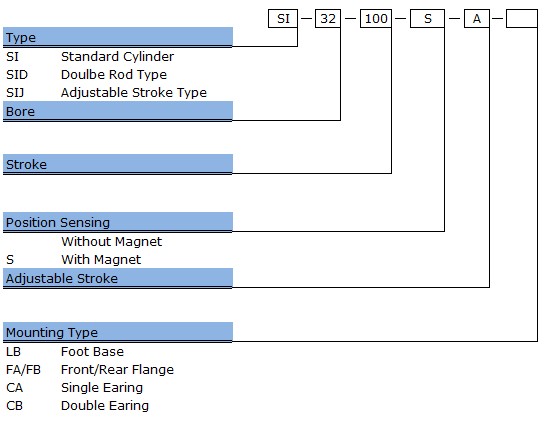

How to order
