Rotational Platfrom MSQ
- MSQ Series Rotary table, rack & pinion Cylinder is high precision balls used in bearing, vertical and horizontal precision are up to ±0.01mm.Rotatinal type is easy for installation. Rolling bearing design, load is 3 to 4 times larger than CRQ series. Rotation is smooth and accurate. Hollowed certer rods for wire or tube to go through, standard angle adjusting device for wider angle adjustment. With magnet ring for sensor switch application.
- Specification
-
Bore(mm)
10
20
30
50
70
100
200
Working Medium
Filtered compressed Air
Cushion Type
Cushion Rubber Cushion(standard)/Shock Absorber(optional)
Angle Adjustable Range
0~190°
Working Pressure Range
With adjustable angle screw :0.1~1.0 Mpa With Shock Absorber:0.1~0.6 Mpa
Steady Swing Time Rang
0.2~1.0s/90°
0.2~1.5s/9°
0.2~2.0s/9°
0.2~2.5s/9°
0.2~0.7s/90°
0.2~1.0s/90
Operating Temperature
Slide bearing/Ball bushing bearing
Allowed Power
With adjustable angle screw
0.007J
0.025J
0.048J
0.081J
0.24J
0.32J
0.56J
With Shock Absorber
0.039J
0.116J
0.029J
1.1J
1.6J
2.9J
Piston Diameter
φ15
φ18
φ21
φ25
φ28
φ32
φ40
Joint Pipe Bore
M5*0.8
1/8’’

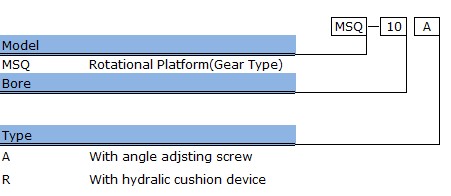

- How to order
-
