Water Solenoid Valve 523

  • high temperature solenoid valve
  • 523 series solenoid valve operating pressure up to 5Mpa ,idea for fluid meida with kinematic viscosity ≤1 mm2/s, including water, gas , acetylene, liquefied gas. piston type structure, smooth starting, high reliability

Specification



Model

5231001

5231002

5231003

5231008

5231010

5231015

5231020

5231025

Port Size

G1/8"

G1/4"

G1/4""

G1/4"

G3/8"

G1/2"

G3/4

G1’’

Orifice Size(mm)

1.2

2

3

13

13

13

25

25

CV Value

0.12

0.16

0.23

3.6

3.6

3.6

11

11

Working-pressure

0~1.6Mpa

0~1.0Mpa

0~0.6Mpa

0.3~5.0Mpa

0.3~3.5Mpa

Operating temperature

0~180℃ for TEFLON

Material of Body

Brass

Working voltage

AC380V,220V,110V,36V,24V

DC220V,110V,36V,24V,12V

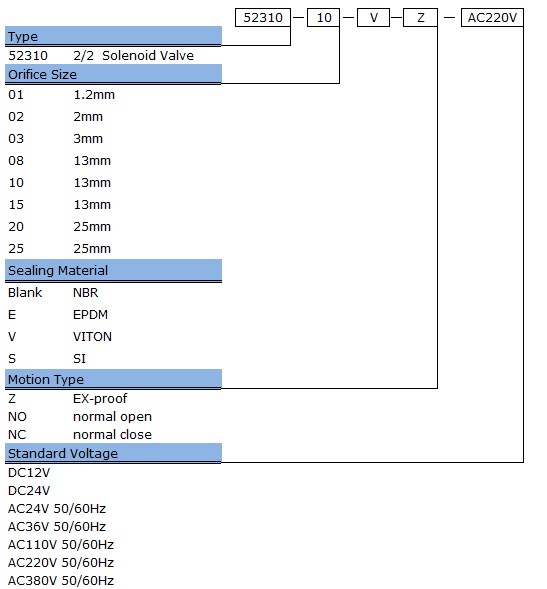

How to order
