Water Solenoid Valve PU225

  • pilot solenoid valves
  • PU series solenoid valves have two types, PU220 direct acting type and PU225 pilot type. Direct acting type range from 1/8’’ to 1’’, the timer is available for 3/8’’ to 1’’, auto drain control, control frequency from 1 to 45 min, drain the water within 1 to 10 seconds. Pilot type range from 3/8’’ to 2’’, PU series valves are widely used in the air control system and water control system.
  • Specifiaction

  • Model

    PU225-03

    PU225-04

    PU225-06

    PU225-08

    PU225-12

    PU225-14

    Port size

    3/8"

    1/2"

    3/4"

    1"

    11/4

    11/2

    Orifice Size

    13

    13

    25

    25

    38

    38

    CV valve

    4.5

    4.5

    12

    12

    22

    30

    Working Pressure

    0.05~1MPa

    Working Medium

    Compressed air, Water , Light Oil (Below 50CST)

    Motion Type

    Pilot Acting

    Working temperature

    -20~60℃

    Operating temperature

    -5~80℃ for NBR, -15~150℃ FOR VITON, EPDM

    Power Consumption

    22VA

    Working voltage

    AC380V,220V,110V,36V,24V

    DC220V,110V,36V,24V,12V

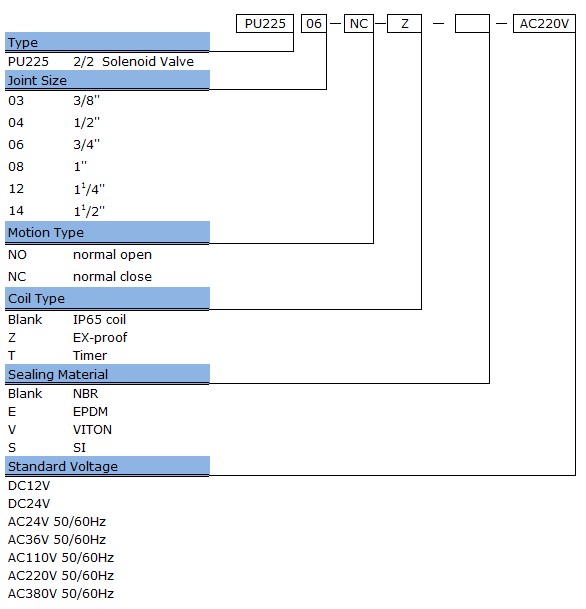

  • How to order
