Foot Valve 4F

  • Foot Valve 4F
  • 4F series foot valve have is mainly 1/4’’, two-position five-way. The normal foot valve is with lock, with cover, with lock and cover.
  • Specification

  • Model

    4F210-08

    4F210-08L

    4F210-08G

    4F210-08LG

    Working Medium

    40 Micron Filtered Air

    Position and way NO.

    Two-position Five-way

    Motion Patten

    Direct Drive Type

    Joint Pipe Bore

    G1/4"

    Working-pressure Range

    0~0.8MPa

    Operating Temperature Range

    0~60℃
  •

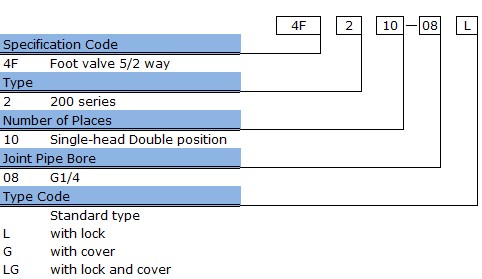

  • How to order
