Hydro pneumatic Cylinder HPNL

  • Installed Horizontally boosting Cylinder
  • HPNL series boosting cylinder would be installed horizontally also the power output, well for the equipments which need output smoothly at horizontal , such like blowing machine and inject machine.

Specification



Motion pattern

Double Action

Pressure range

4-7 kg/cm2 filtered compressed air

Fuel oil

ISO Vg32

Temperature

-5~80℃ (other temperature can be customized)

operating speed

50~700mm/s

Oil cylinder proof pressure

210 kg/cm2

Air cylinder proof pressure

15 kg/cm2

Stroke tolerance(mm)

+1.0mm

0

Working Frequency

More than 20 s/min

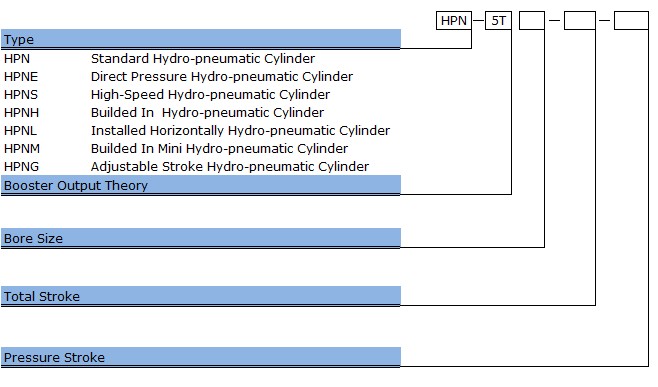

How to order
