Hydro Pneumatic Cylinder HPNE

  • boosting cylinder
  • HPNE series boosting cylinder is a direct pressure boosting cylinder, mainly used for stamping, rivets, bending and stamping operations, which using pure pressure air as a driven force, using front and rear pistons sectional area ratio, to make the low pressure air into the high oil pressure .

Specification



Motion pattern

Double Action

Pressure range

4-7 kg/cm2 filtered compressed air

Fuel oil

ISO Vg32

Temperature

-5~80℃ (other temperature can be customized)

operating speed

50~700mm/s

Oil cylinder proof pressure

210 kg/cm2

Air cylinder proof pressure

15 kg/cm2

Stroke tolerance(mm)

+1.0mm

0

Working Frequency

More than 20 s/min

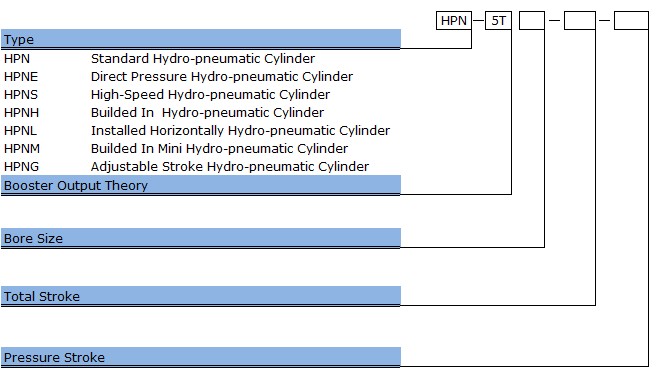

How to order
