Hydro-pneumatic Cylinder HPNH

  • boosting cylinder build in
  • HPNH series cylinder is builded in cylinder, smaller and lighter than other cylinders, also the length on vertical, but it have short stroke and should be installed only in front. So that this type of cylinder is suitable for the equipment which only need short stroke , such as molding, plastic welding, riveting and so on .

Specification



Motion pattern

Double Action

Pressure range

3-7 kg/cm2 filtered compressed air

Fuel oil

ISO Vg68#

Temperature

0~55℃ (other temperature can be customized)

operating speed

50~450mm/s

Oil cylinder proof pressure

300 kg/cm2

Air cylinder proof pressure

12 kg/cm2

Stroke tolerance(mm)

+1.0mm  0.0mm

+0.50mm  0.00mm

Working Frequency

10-45 s/min (according to stroke)

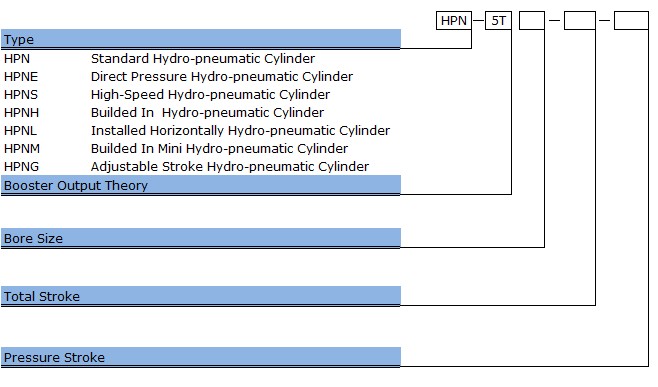

How to order
