PRODUCTSAir Preparation Unit

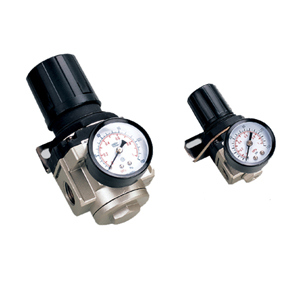

Air Regulator AR1000_5000
- AR1000-5000 Air Regulator are same style as SMC.It is standard regualtor for air treatment units, and also can use with other equipments for regulate the air pressure. We manufacture all important parts by ourself to insure the quality.Outsourcing parts were selected and tested very strictly. The range of adjustable pressure is 0.05～0.85Mpa.
Specification
|
Bore(mm) |
AR1000-M5 |
AR2000-01 |
AR2000-02 |
AR2500-02 |
AR2500-03 |
AR3000-02 |
|
Rated Flow |
100 |
550 |
550 |
2000 |
2000 |
2500 |
|
Joint Pipe Bore |
M5 |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/4" |
|
Highest Working Pressure |
1.0 MPa |
|||||
|
Ensured Pressure Resistance |
1.5 MPa |
|||||
|
Operating Temperature Range |
5-60 ℃ |
|||||
|
Range of Adjustable Pressure |
0.05-0.7 MPa |
0.05-0.85 MPa |
||||
|
Valve Type |
With Overflow |
|||||
|
Bore(mm) |
AR3000-03 |
AR4000-03 |
AR4000-04 |
AR4000-06 |
AR5000-06 |
AR5000-10 |
|
Rated Flow |
2500 |
6000 |
6000 |
6000 |
8000 |
8000 |
|
Joint Pipe Bore |
G3/8" |
G3/8" |
G1/2" |
G3/4" |
G3/4" |
G1" |
|
Highest Working Pressure |
1.0 MPa |
|||||
|
Ensured Pressure Resistance |
1.5 MPa |
|||||
|
Operating Temperature Range |
5-60 ℃ |
|||||
|
Range of Adjustable Pressure |
0.05-0.7 MPa |
0.05-0.85 MPa |
||||
|
Valve Type |
With Overflow |
|||||

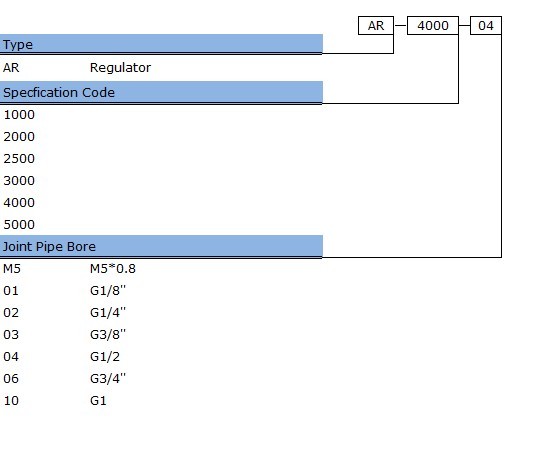

How to order
