PRODUCTSAir Preparation Unit
Air Source Treatment AFC_BFC
- AFC、BFC FR.L air treatment units are same style as AIRTAC. It includes 2 parts: filter regulator and lubricator. But still have 3 function: filtration, decompression and lubricating. FR.L is much compact then F.R.L. We manufacture all important parts by ourself to insure the quality. Outsourcing parts were selected and tested very strictly. Auto Drain can be selected.
Specifications
|
Model |
AFC1500 |
AFC2000 |
BFC2000 |
BFC3000 |
BFC4000 |
||||
|
Operating Fluid |
Air |
||||||||
|
Joint Pipe Bore |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/2" |
||||
|
Filtering Element Roughness |
40μ |
||||||||
|
Range of Adjustable Pressure |
0.05~0.85MPa |
||||||||
|
Max. Adjustable Pressure |
0.95MPa |
||||||||
|
Ensured Pressure Resistance |
1.5MPa |
||||||||
|
Operate temperature Range |
5~60℃ |
||||||||
|
Capacity of Filter Cup |
15cc |
60cc |
|||||||
|
Capacity of Oil Feed Cup |
25cc |
90cc |
|||||||
|
Recommended oil |
ISO VG 32 or Same Grade Oil |
||||||||
|
Weight |
0.5kg |
0.7kg |
|||||||
|
Material |
Body |
Aluminum Die-casting Forming |
|||||||
|
Container Cup |
PE |
||||||||
|
Protective Cup Cover |
- |
Iron |
|||||||
|
Composing Elements |
Filter & Regulator |
AFR1500 |
AFR2000 |
BFR2000 |
BFR3000 |
BFR4000 |
|||
|
Lubricator |
AL1500 |
AL2000 |
BL2000 |
BL3000 |
BL4000 |
||||

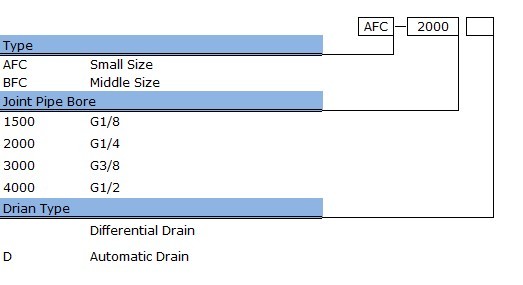

How to order
