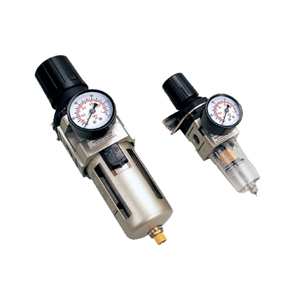

Filter Regulator AW1000_5000

AW1000-5000 filter & regulator are same style as SMC.It fixs filter and regulator together as one part, make it have compact dimension. But it does not affect the excellent performance of filtration and decompression. We manufacture all important parts by ourself to insure the quality, such as filter core. Outsourcing parts were selected and tested very strictly. Auto Drain can be selected. All size have overflow function.

Specification

Bore(mm)	AW1000-M5	AW2000-01		AW2000-02	AW3000-02	AW3000-03
Rated Flow	100	550		550	2000	2000
Joint Pipe Bore	M5	G1/8"		G1/4"	G1/4"	G3/8"
Filter Precision	25 μm
Highest Working Pressure	1.0 MPa
Ensured Pressure Resistance	1.5 MPa
Operating Temperature Range	5-60 ℃
Range of Adjustable Pressure	0.05-0.7 MPa		0.05-0.85 MPa
Recommended Oil Use	ISO VG32
Container Material	Polycarbonate
Protective Cove	Not Available				Available
Drain Function	Differential Drain				Differential Drain, automatic Drain
Valve Type	With Overflow

Bore(mm)	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
Rated Flow	4000	4000	4500	5500	5500
Joint Pipe Bore	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Filter Precision	25 μm
Highest Working Pressure	1.0 MPa
Ensured Pressure Resistance	1.5 MPa
Operating Temperature Range	5-60 ℃
Range of Adjustable Pressure	0.05-0.85 MPa
Recommended Oil Use	ISO VG32
Container Material	Polycarbonate
Protective Cove	Available
Drain Function	Differential Drain, automatic Drain
Valve Type	With Overflow

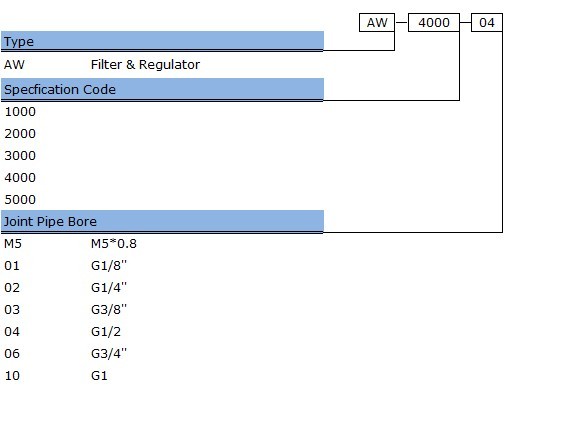

How to order
