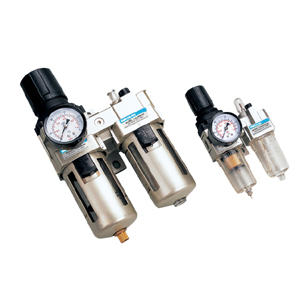

Air Source Treatment AC1010_5010

Bore(mm)

AC1010-M5

AC2010-01

AC2010-02

AC3010-02

AC3010-03

Rated Flow

90

500

500

1700

1700

Joint Pipe Bore

M5

G1/8"

G1/4"

G1/4"

G3/8"

Filter Precision

25 μm

Highest Working Pressure

1.0 MPa

Ensured Pressure Resistance

1.5 MPa

Operating Temperature Range

5-60 ℃

Range of Adjustable Pressure

0.05-0.7 MPa

0.05-0.85 MPa

Recommended Oil Use

ISO VG32

Container Material

Polycarbonate

Protective Cove

Not Available

Available

Drain Function

Differential Drain

Differential Drain, automatic Drain

Valve Type

With Overflow

Composing Elements

Filter & Regulator

AW1000-M5

AW2000-01

AW2000-02

AW3000-02

AW3000-03

Lubricator

AL1000-M5

AL2000-01

AL2000-02

AL3000-02

AL3000-03

Bore(mm)

AC4010-03

AC4010-04

AC4010-06

AC5010-06

AC5010-10

Rated Flow

3000

3000

3000

4000

4000

Joint Pipe Bore

G3/8"

G1/2"

G3/4"

G3/4"

G1"

Filter Precision

25 μm

Highest Working Pressure

1.0 MPa

Ensured Pressure Resistance

1.5 MPa

Operating Temperature Range

5-60 ℃

Range of Adjustable Pressure

0.05-0.85 MPa

Recommended Oil Use

ISO VG32

Container Material

Polycarbonate

Protective Cove

Available

Drain Function

Differential Drain, automatic Drain

Valve Type

With Overflow

Composing Elements

Filter & Regulator

AW4000-03

AW4000-04

AW4000-06

AW5000-06

AW5000-10

Lubricator

AL4000-03

AL4000-04

AL4000-06

AL5000-06

AL5000-10
