PRODUCTSAir Preparation Unit

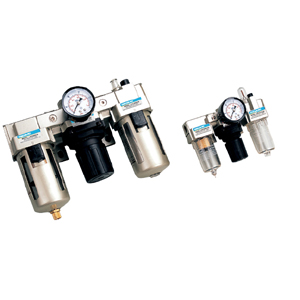

Air Source Treatment AC1000_5000
- AC1000-5000 F.R.L air treatment units are same style as SMC.It includes 3 parts: filter, regulator and lubricator. It has standard dimensions and steady performance. We manufacture all important parts by ourself to insure the quality. Outsourcing parts were selected and tested very strictly. Auto Drain can be selected. All size have overflow function.
Specification
|
Model |
AC1000-M5 |
AC2000-01 |
AC2000-02 |
AC2500-02 |
AC2500-03 |
AC3000-02 |
|
|
Rated Flow |
90 |
500 |
500 |
1500 |
1500 |
2000 |
|
|
Joint Pipe Bore |
M5 |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/4" |
|
|
Filter Precision |
25 μm |
||||||
|
Highest Working Pressure |
1.0 MPa |
||||||
|
Ensured Pressure Resistance |
1.5 MPa |
||||||
|
Operating Temperature Range |
5-60 ℃ |
||||||
|
Range of Adjustable Pressure |
0.05-0.7 MPa |
0.05-0.85 MPa |
|||||
|
Recommended Oil Use |
ISO VG32 |
||||||
|
Container Material |
Polycarbonate |
||||||
|
Protective Cove |
Not Available |
Available |
|||||
|
Drain Function |
Differential Drain |
Differential Drain, automatic Drain |
|||||
|
Valve Type |
With Overflow |
||||||
|
Composing Elements |
Filter |
AF1000-M5 |
AF2000-01 |
AF2000-02 |
AF3000-02 |
AF3000-03 |
AF3000-02 |
|
Regulator |
AR1000-M5 |
AR2000-01 |
AR2000-02 |
AR3000-02 |
AR3000-03 |
AR3000-02 |
|
|
Lubricator |
AL1000-M5 |
AL2000-01 |
AL2000-02 |
AL3000-02 |
AL3000-03 |
AL3000-02 |
|
|
Model |
AC3000-03 |
AC4000-03 |
AC4000-04 |
AC4000-06 |
AC5000-06 |
AC5000-10 |
|
|
Rated Flow |
2000 |
4000 |
4000 |
4500 |
5000 |
5000 |
|
|
Joint Pipe Bore |
G3/8" |
G3/8" |
G1/2" |
G3/4" |
G3/4" |
G1" |
|
|
Filter Precision |
25 μm |
||||||
|
Highest Working Pressure |
1.0 MPa |
||||||
|
Ensured Pressure Resistance |
1.5 MPa |
||||||
|
Operating Temperature Range |
5-60 ℃ |
||||||
|
Range of Adjustable Pressure |
0.05-0.85 MPa |
||||||
|
Recommended Oil Use |
ISO VG32 |
||||||
|
Container Material |
Polycarbonate |
||||||
|
Protective Cove |
Available |
||||||
|
Drain Function |
Differential Drain, automatic Drain |
||||||
|
Valve Type |
With Overflow |
||||||
|
Composing Elements |
Filter |
AF3000-03 |
AF4000-03 |
AF4000-04 |
AF4000-06 |
AF5000-06 |
AF5000-10 |
|
Regulator |
AR3000-03 |
AR4000-03 |
AR4000-04 |
AR4000-06 |
AR5000-06 |
AR5000-10 |
|
|
Lubricator |
AL3000-03 |
AL4000-03 |
AL4000-04 |
AL4000-06 |
AL5000-06 |
AL5000-10 |
|

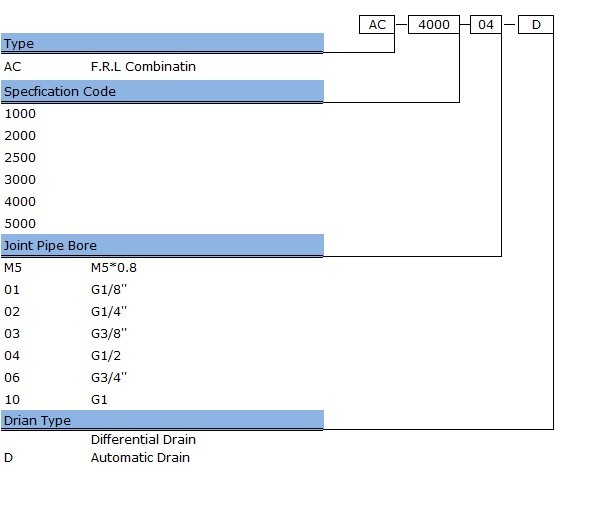

How to order
