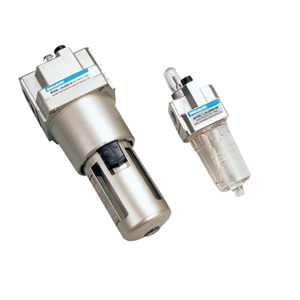

Air Lubricator AL1000_5000

  • air preparation unit smc
  • Air treatment units product ------ AL1000-5000 Air Lubricator are same style as SMC.It has excellent performance. It can help valve and cylinder working smoothly. We manufacture all important parts by ourself to insure the quality, such as filter core. Outsourcing parts were selected and tested very strictly. ISO VG32 or equal oil can be applied.

Specification



Bore(mm)

AL1000-M5

AL-2000-01

AL2000-02

AL3000-02

AL3000-03

Rated Flow

95

800

800

1700

1700

Joint Pipe Bore

M5

G1/8"

G1/4"

G1/4"

G3/8"

Filter Precision

25 μm

Highest Working Pressure

1.0 MPa

Ensured Pressure Resistance

1.5 MPa

Operating Temperature Range

5-60 ℃

Range of Adjustable Pressure

0.05-0.85 MPa

Recommended Oil Use

ISO VG32

Container Material

Polycarbonate

Protective Cove

Not Available

Available

Drain Function

Differential Drain

Differential Drain, automatic Drain





Bore(mm)

AL4000-03

AL4000-04

AL4000-06

AL5000-06

AL5000-10

Rated Flow

5000

5000

5000

7000

7000

Joint Pipe Bore

G3/8"

G1/2"

G3/4"

G3/4"

G1"

Filter Precision

25 μm

Highest Working Pressure

1.0 MPa

Ensured Pressure Resistance

1.5 MPa

Operating Temperature Range

5-60 ℃

Range of Adjustable Pressure

0.05-0.85 MPa

Recommended Oil Use

ISO VG32

Container Material

Polycarbonate

Protective Cove

Available

Drain Function

Differential Drain, automatic Drain

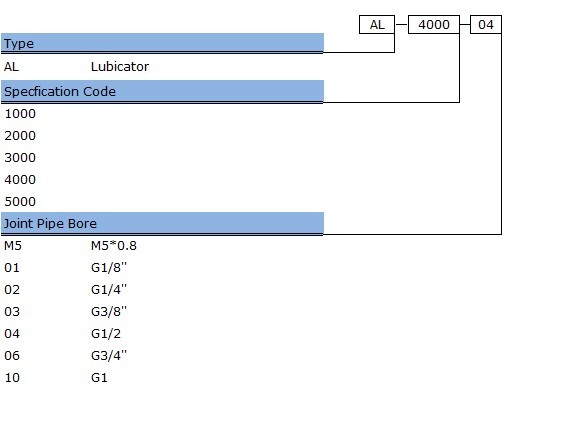

How to order
