PRODUCTSAir Preparation Unit
Air Lubricator AL_BL
- AL&BL Air Lubricator are same style as AIRTAC. It has excellent performance. It can help valve and cylinder working smoothly. We manufacture all important parts by ourself to insure the quality, such as filter core. Outsourcing parts were selected and tested very strictly. AL is small size, and it’s cup capacity is 25cc. BL is big size, and it’s cup capacity is 90cc. ISO VG32 or equal oil can be applied.
Specifications
|
Model |
AL1500 |
AL2000 |
BL2000 |
BLR3000 |
BL4000 |
|
|
Operating Fluid |
Air |
|||||
|
Joint Pipe Bore |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/2" |
|
|
Ensured Pressure Resistance |
1.5MPa |
|||||
|
Operate temperature Range |
5~60℃ |
|||||
|
Recommended oil |
ISO VG 32 or Same Grade Oil |
|||||
|
Capacity of Filter Cup |
25cc |
90cc |
||||
|
Weight |
0.17kg |
0.25kg |
||||
|
Material |
Body |
Aluminum Die-casting Forming |
||||
|
Container Cup |
PE |
|||||
|
Protective Cup Cover |
- |
Iron |
||||

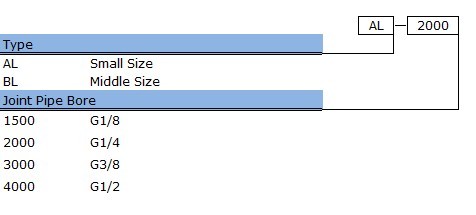

How to order
