PRODUCTSAir Preparation Unit
Air Source Treatment LFR
- Standard 40μm filter element can be replaced by a 5μm filter element easily for special application. The LR maintains operating pressure when pressure oscillation between imputing pressure and compressor air.
Specifications
|
Size |
MINI |
MIDI |
MAXI |
|||||||||
|
Medium |
Compressed air |
|||||||||||
|
Features of structure |
Sintered filter with water separator; |
|||||||||||
|
Mounting Type |
Pipe mounting or foot mounting |
|||||||||||
|
Assembly position |
Vertical ±5° |
|||||||||||
|
Connection |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
||||
|
Standard nominal flow rate |
LFR-…(-A) |
700 |
1000 |
1200 |
200 |
2600 |
2600 |
7000 |
8000 |
|||
|
LFR-…-7-(A) |
800 |
1300 |
1500 |
2500 |
2800 |
2800 |
8500 |
8700 |
||||
|
LFR-…-M5-(-A) |
600 |
850 |
1050 |
1700 |
1800 |
2100 |
6500 |
7200 |
||||
|
Primary pressure |
Manual condensate drain |
1~16bar |
||||||||||
|
Automatic condensate drain |
1.5~12 bar |
|||||||||||
|
Grade of filtration |
40μm / 5μm |
|||||||||||
|
Capacity of condensate fluid |
22ml |
43ml |
80ml |
|||||||||
|
Temperature range |
0~60°C |
|||||||||||
|
Materials information |
Housing: Zinc die-casting; Filter bowl and oil bowl: PC; Metal bowl guard: aluminium alloy Sealing: NBR |
|||||||||||

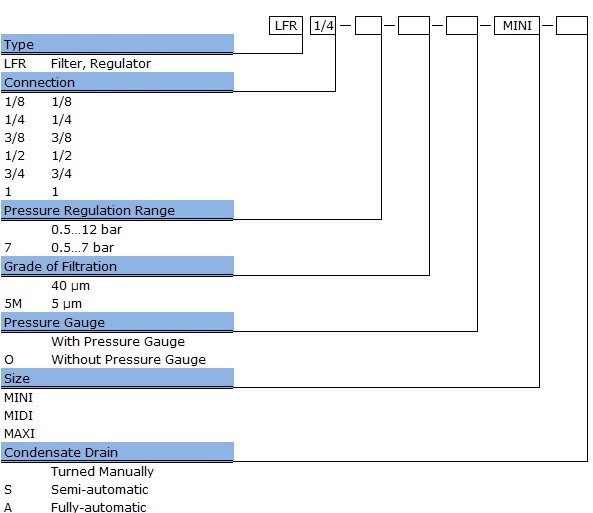

How to order
